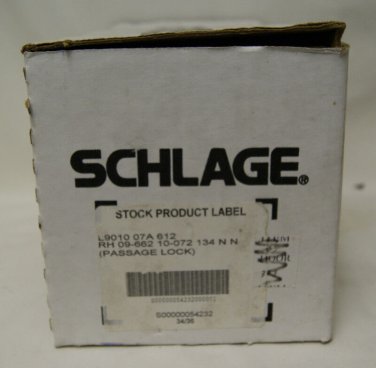

Schlage L9010 07A 612 Passage Lock Locksmith Satin Bronze - RH Brand New , complete in original box , Finish: Satin bronze box might be distressed a little Applications: For commercial and institutional buildings: offices, schools, hospitals, and hotels where the finest in auxiliary mortise deadbolt locks are required. Certifications: ANSI 156.5, 1992, Grade 1. UL Listed. Spacing: Center line turn-piece to center line cylinder. 19/64" (29 mm) Door Range: 1-3/4 " (44 mm) standard. Call for information on other door thicknesses. Case Size: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm) Armored Front: 1-1/4" x 5-19/32" x 7/32" (32 mm x 142 mm x 6 mm) standard. Strikes: 1-1/8" x 3 5/8" (29 mm x 92 mm), no lip furnished with dust box , standard Backset: 2-3/4" (70 mm) only. Deadbolt: 1" (25 mm) throw stainless steel.A Rose Trim: 2 1/8" (54 mm) diameter
